RTU540 product line

Technology translator for past & future system integration

Gateway product for distribution and sub-transmission. Bridges old and new technology and combines existing devices and new standards protocols (such as IEC 61850) in one substation automation system. RTU540 incorporates advanced features like programmable logic control and a human machine interface allowing for instant insight into the status of the grid. The high-quality, compact metal housing includes input and output modules which lead to space savings in the control cabinet.

Your Benefits:

Powerful protocol gateway to bridge old and new technologies in one system
Intelligent device for automated load and voltage control
Robust and compact housing for fan-less operation enables you to handle a complex network due to distributed intelligence
Agile functionality allows easy adaption of automation based on changing system requirements
Selective interpretation allow fast decision making in the network control center and safes primary equipment
Communication redundancy for peace of mind and confidence in your network

Application Example
Application Area
Application Explorer

Being responsible for a whole network puts you in the situation where some devices might be brand new while others are working since a very long time. RTU540 is the perfect product for you to bring them together in one system. As a gateway between IEDs and network control system (communication protocols and station bus) it is able to interprete information from all standard protocols. Additionally our gateway is perfect if you want to integrate serial I/Os into your digital station bus.

We offer full protocol support and are able to digitize your data. The changing topology of modern electric networks requires a constant voltage control. This can be automated with the integration of RTU540 in the transformer. The device can independent from the network control center control the voltage levels and send signals to adjust them. This gives you the time to focus on more important topics in the control center and peace of mind that the RTU540 is the reliable solution for automation.

Application	RTU520	RTU540	RTU560
Ring main units	■
Pole-top RTUs	■
Capacitor banks	■
Demand response		■
Fault detection isolation restoration		■
Voltage optimization		■
Decentralized energy resources		■
Substation automation			■
Gateway		■
Wellhead automation	■	■	■
Pipeline supervision	■	■
Monitoring and control of pumping stations	■	■
Monitoring and control of lift stations	■	■
Monitoring and control of water reservoirs	■

Get to know more

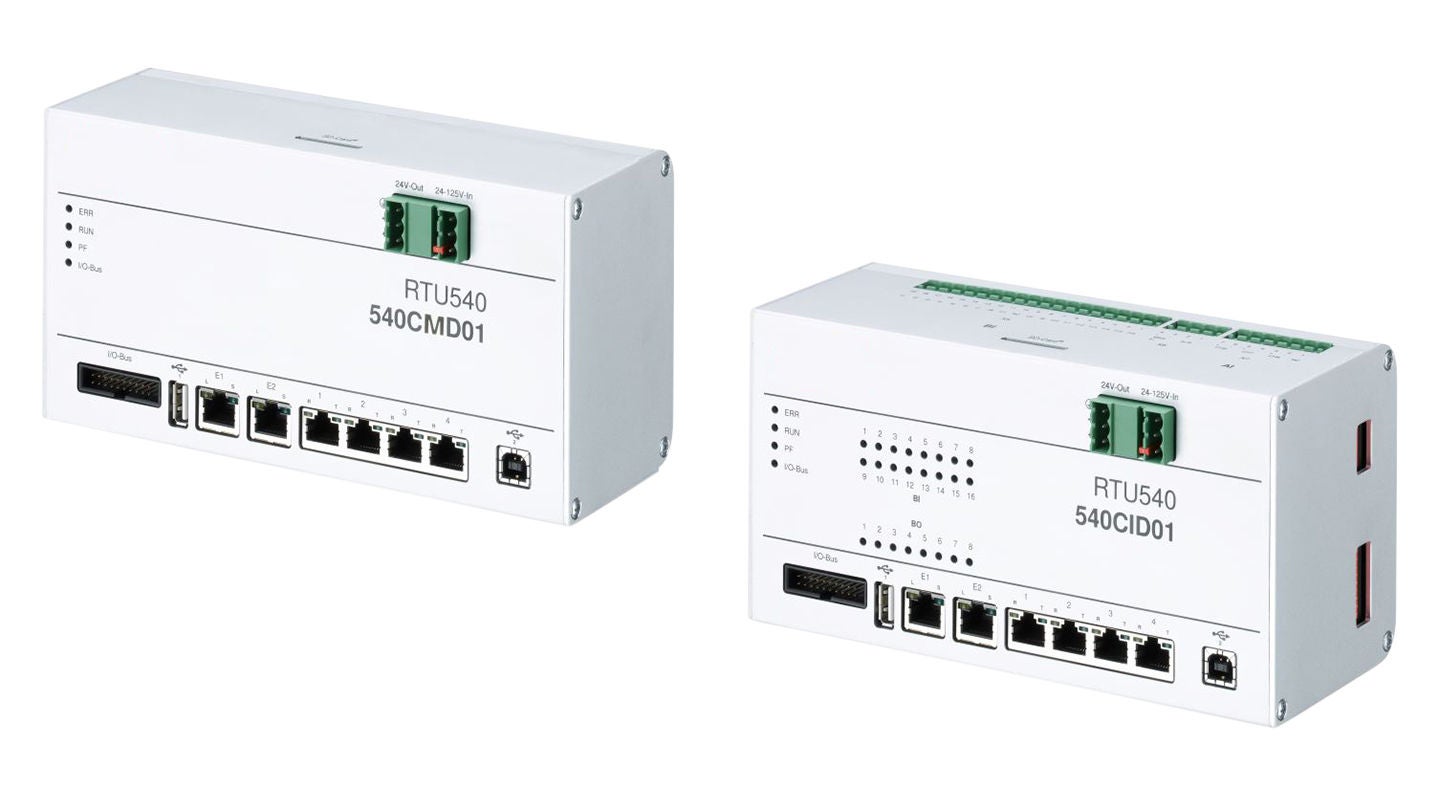

540CID01: base module
540CMD01: base module

540CID01: base module

DIN rail mounted base module RTU540:

4x serial port (RS-232, RS-485)
2x Ethernet interface (10/100BaseT)
2x USB ports
Integrated I/O (16 binary inputs, 8 binary outputs, 8 analog inputs
Power supply 24...125 V DC

(1 out of n) check
With connection interface to RTU500 I/O-extension modules
Process voltage R0001: 24...60 V DC
Process voltage R0002: 110...125 V DC

RTU560

Product line

RTU520

Product line

SDM600

System Data Manager
